Standard Stratocaster® - SkyLINE Series™

A Classic Circuit, Refined with Purpose

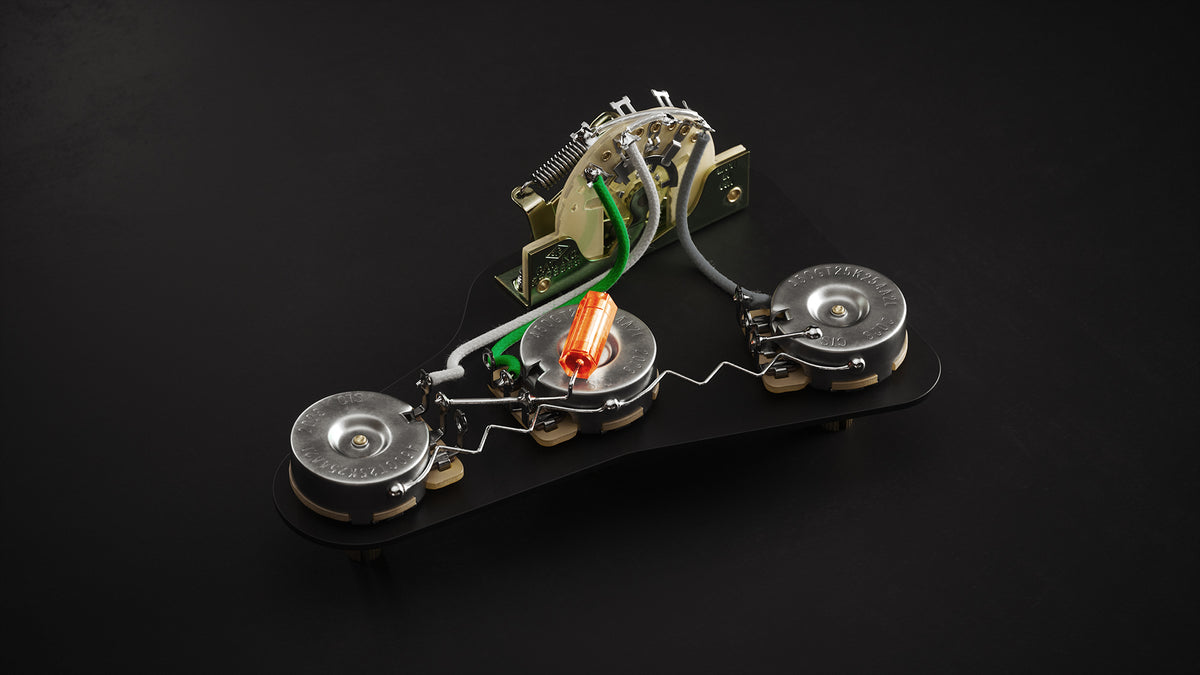

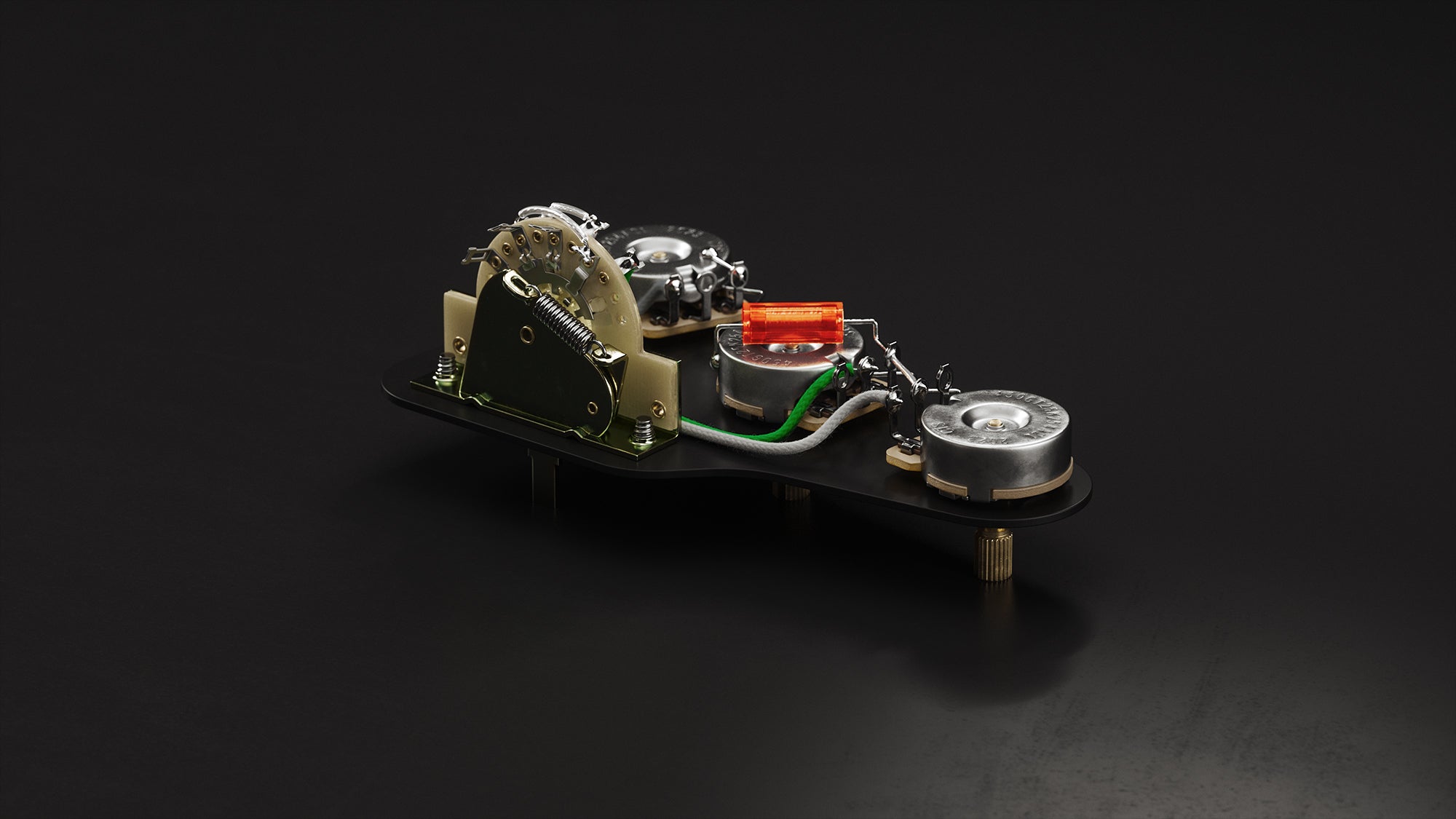

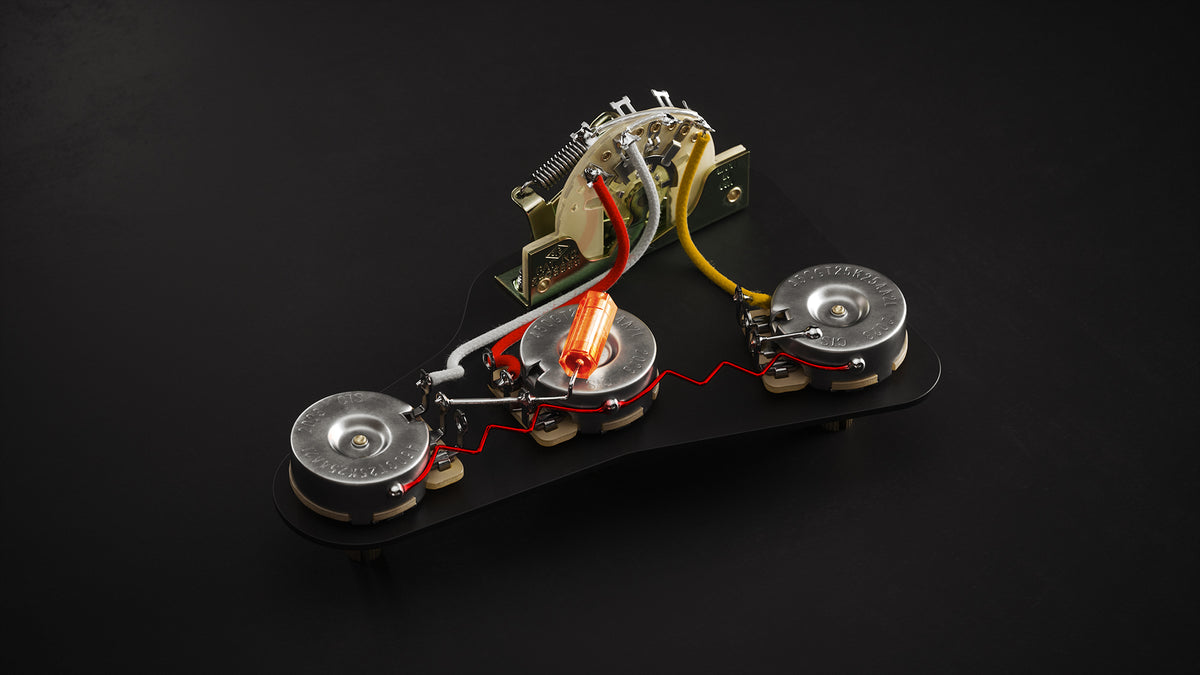

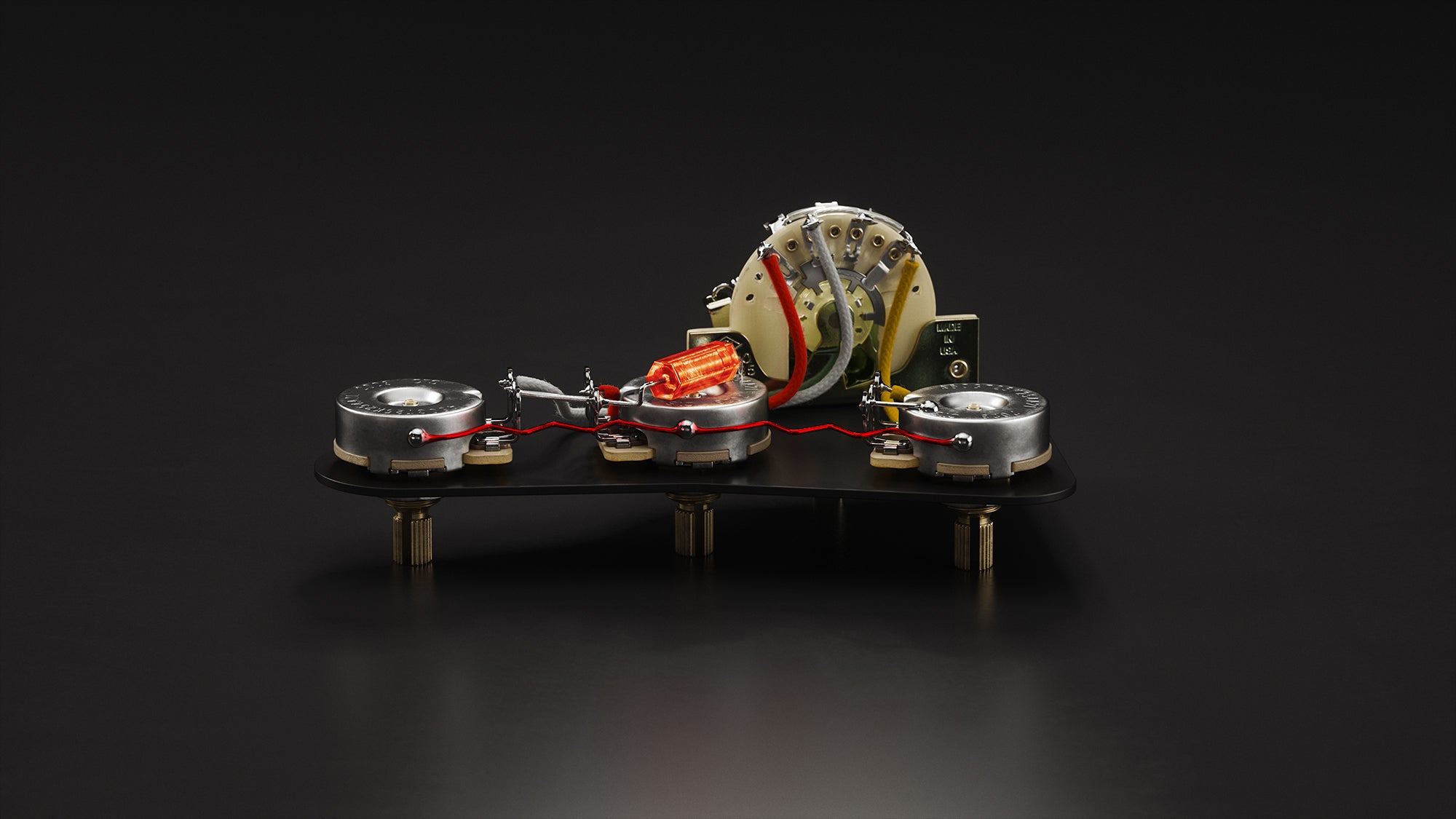

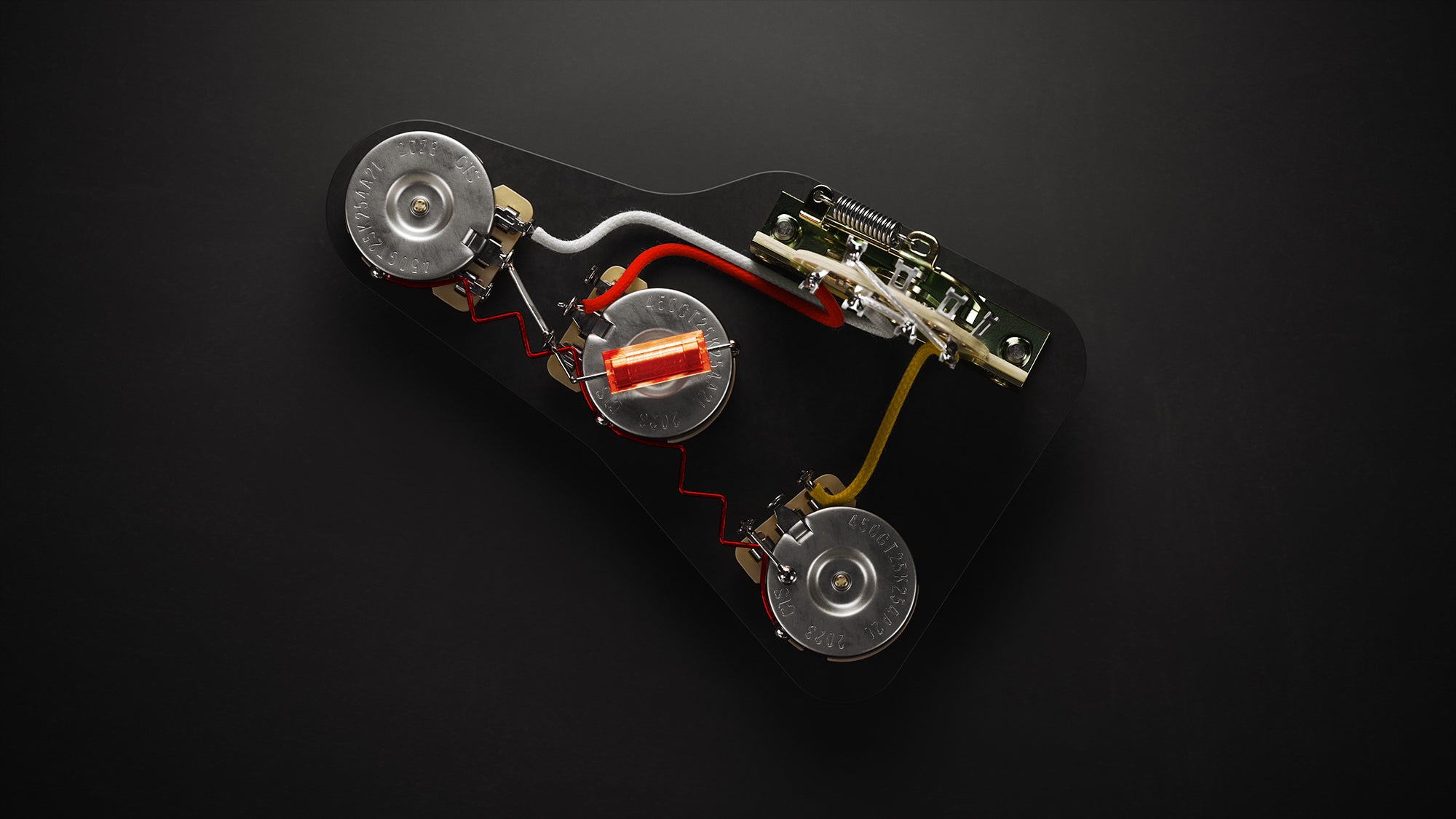

Built for players who value tone above all. This Strat-style harness blends familiar layout with studio-grade clarity — rebuilt from the inside out for modern reliability, minimal signal loss, and expressive range.

Why It Hits Different

Pure Signal Path
One master volume. Two tone controls. No extra switches or noise. The result? Less resistance, less interference — just clean, unfiltered tone that stays true to your pickups.

Expanded Tonal Range
The CRL 5-way switch unlocks five precise pickup combinations — from bell-clear neck tones to tight bridge bite, with balanced in-between blends that don't fall apart.

Expressive Tone Shaping
Dual CTS tone pots give you total command of your high end. Dial out ice-pick shrillness or revive lifeless pickups with ease — the controls respond musically, not mechanically.

No Learning Curve
Ergonomic Strat-style layout with intuitive placement: volume up top, tones below. Easy to adjust on the fly without second-guessing your hand position.

Component Breakdown

CRL 5-Way Blade Switch

• Pickup Selector: 5 distinct positions
• Cavity Depth Required: 1-3/8" (34.93 mm)
• Mounting Screw Spacing: 1-5/8" (41.28 mm)
• Lever Stem: 0.052" x 0.188" (1.32 mm x 4.78 mm)
• Pickguard Slot: 1/16" x 1-1/16" (1.59 mm x 26.99 mm)

CTS 250K Audio Taper Pots

• 1 Volume, 2 Tone Controls
• Resistance: 250K-Ohm
• Shaft: 0.235" (5.95 mm), 24-tooth split
• Thread: 3/8" x 32
• Threaded Bushing Height: 1/4" (6.35 mm)
• Mounting Hole: 3/8" (9.52 mm)

LolliCAP™ Tone Capacitor

• Custom-Cast, 0.022 µF
• Hand-selected for optimal taper and tonal transparency

Pure Tone Output Jack

• Dual-contact design for a tighter grip and cleaner signal
• 1/4" mono, 3/8" (9.52 mm) mounting hole
• Thread: 3/8" x 32, Length: 3/8" (9.52 mm)

Gavitt Push-Back Wire

• 22 AWG pre-tinned stranded copper
• Cloth-covered for vintage feel and modern reliability
• Braided shielded output wire reduces interference
