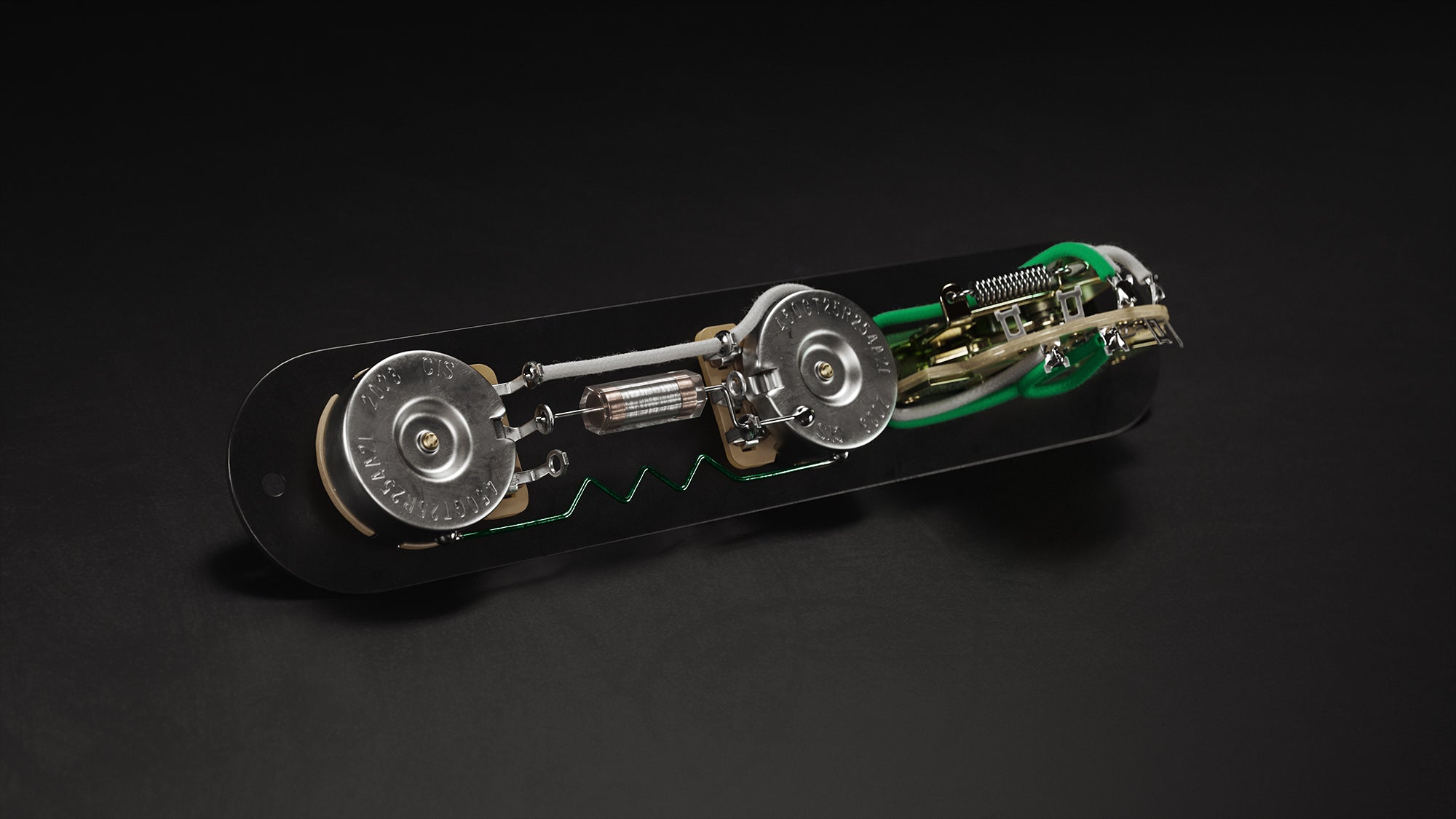

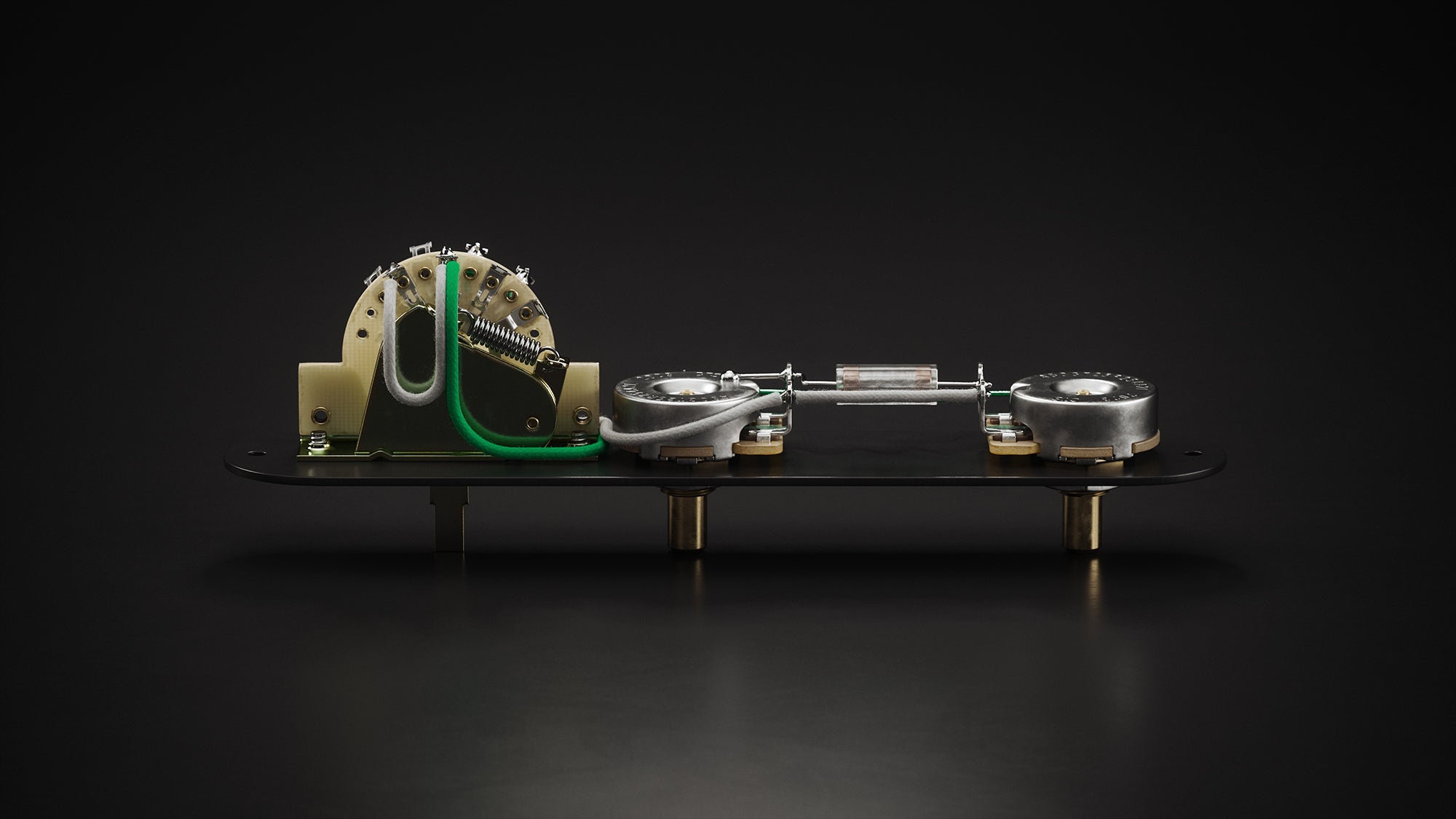

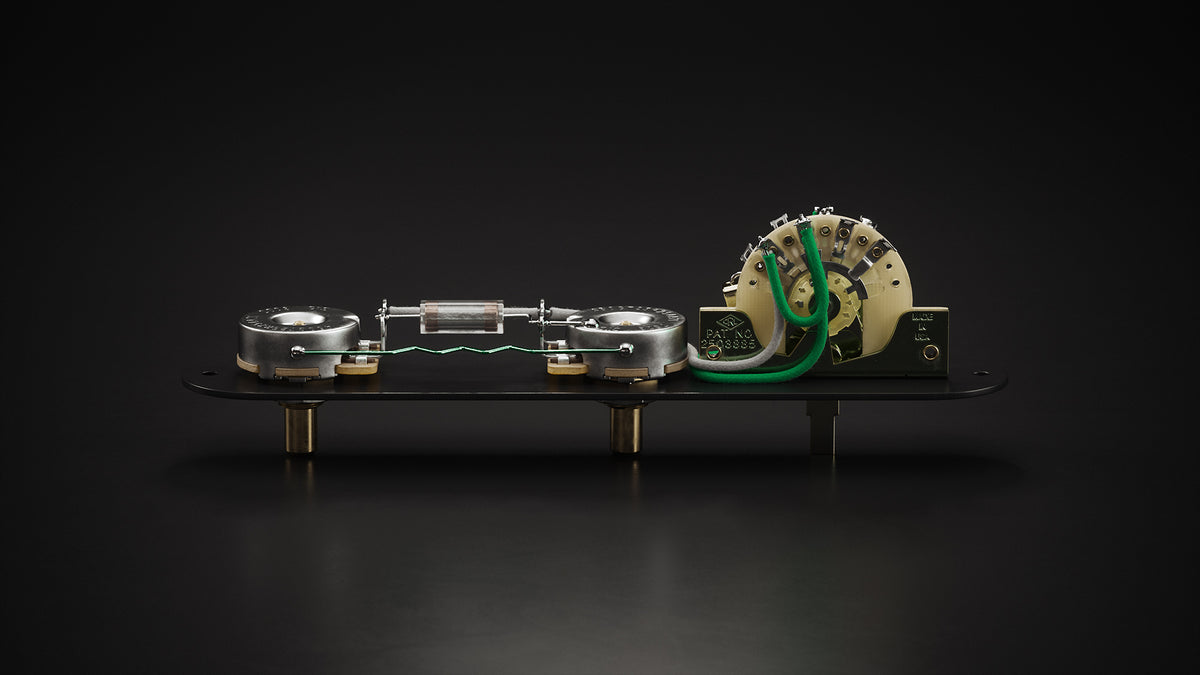

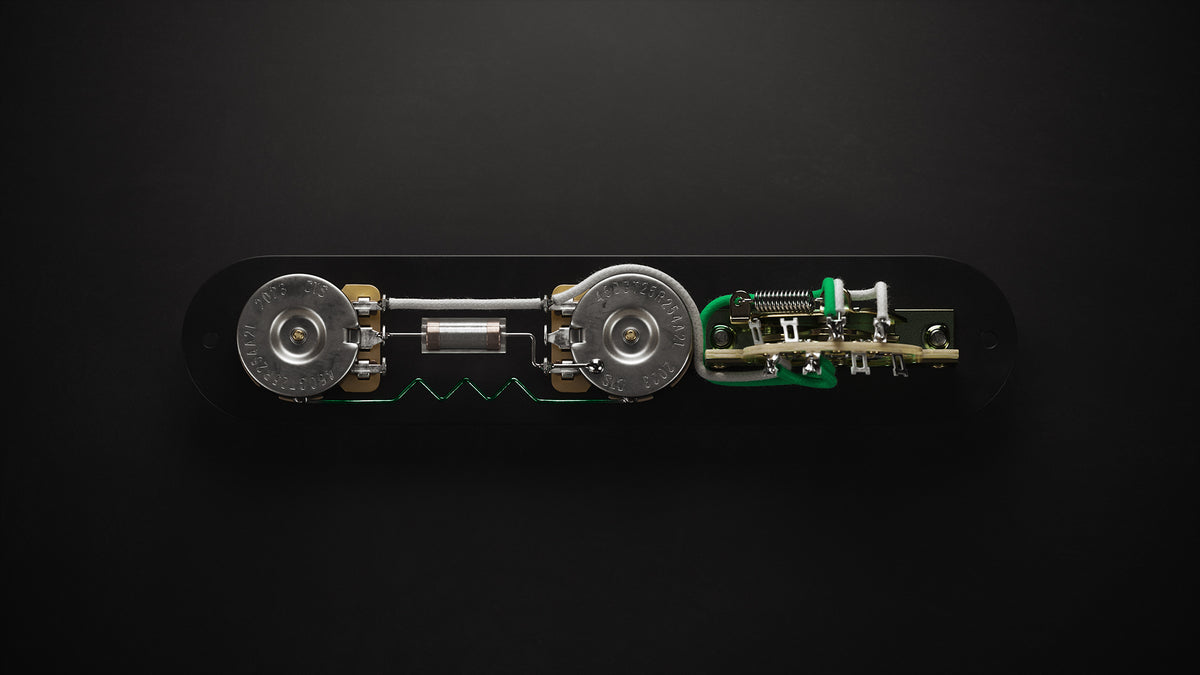

Standard Telecaster® - SkyLINE Collection

A classic circuit, rebuilt with modern discipline. Simple, expressive, and tone-focused — made for players who want tonal clarity and a layout that feels like home.

Key Features

Minimal Signal Loss
A single master volume and two tone controls keep the circuit direct and uncluttered. Less resistance, less noise — just clean, honest tone.

Wide Tonal Palette
The CRL 5-way switch delivers five distinct pickup combinations, from articulate neck tones to focused bridge attack — with smooth, usable blends in between.

Responsive Treble Control
Dual CTS tone pots let you tame shrill highs, brighten up dark pickups, or find the sweet spot in between.

Intuitive Layout
Familiar Strat-style control placement: volume on top, tone below. Fast to navigate, effortless to play — no guesswork.

Component Specifications

CRL 5-Way Blade Switch

• Cavity Depth Required: 1-3/8" (34.93 mm)
• Mounting Screw Spacing: 1-5/8" (41.28 mm)
• Lever Stem: 0.052" x 0.188" (1.32 mm x 4.78 mm)
• Pickguard Slot: 1/16" x 1-1/16" (1.59 mm x 26.99 mm)

CTS 250K Pots (Volume + 2 Tone)

• Resistance: 250K-Ohm
• Shaft: 0.235" (5.95 mm), 24-tooth split shaft
• Thread: 3/8" x 32
• Threaded Bushing Height: 1/4" (6.35 mm)
• Mounting Hole: 3/8" (9.52 mm)

LolliCap™ Capacitor

• Value: 0.022 µF
• Housing: Solid-state polymer encapsulation
• Tone: Smooth high-end roll-off with clear, balanced response

Pure Tone Output Jack

• Type: 1/4" mono
• Mounting Hole: 3/8" (9.52 mm)
• Thread: 3/8" x 32
• Threaded Length: 3/8" (9.52 mm)

Wiring

• Gauge: 22 AWG
• Core: Pre-tinned stranded copper
• Insulation: Vintage-style cloth push-back
• Output: Braided shielded wire for jack run

Notes

Stratocaster® and Strat® are registered trademarks of Fender Musical Instruments Corporation (FMIC). heir.craft has no affiliation with FMIC.
